hpdf_consts.h File Reference

#include "hpdf_types.h"

Include dependency graph for hpdf_consts.h:

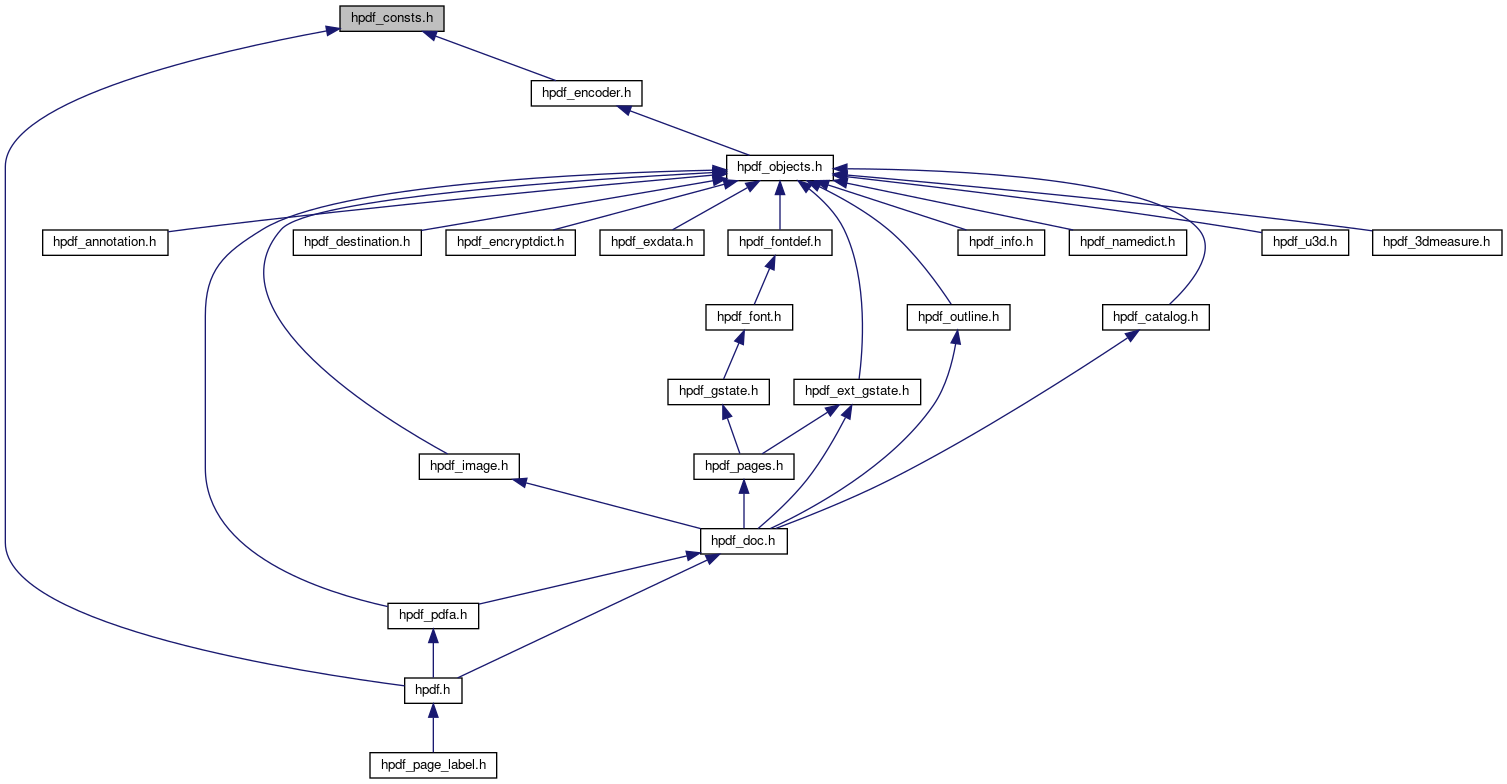

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	HPDF_TRUE   1
#define	HPDF_FALSE   0
#define	HPDF_OK   0
#define	HPDF_NOERROR   0
#define	HPDF_PI   3.14159265358979323846
#define	HPDF_TMP_BUF_SIZ   512
#define	HPDF_SHORT_BUF_SIZ   32
#define	HPDF_REAL_LEN   64
#define	HPDF_INT_LEN   11
#define	HPDF_TEXT_DEFAULT_LEN   256
#define	HPDF_UNICODE_HEADER_LEN   2
#define	HPDF_DATE_TIME_STR_LEN   23
#define	HPDF_BYTE_OFFSET_LEN   10
#define	HPDF_OBJ_ID_LEN   7
#define	HPDF_GEN_NO_LEN   5
#define	HPDF_DEF_FONT   "Helvetica"
#define	HPDF_DEF_PAGE_LAYOUT   HPDF_PAGE_LAYOUT_SINGLE
#define	HPDF_DEF_PAGE_MODE   HPDF_PAGE_MODE_USE_NONE
#define	HPDF_DEF_WORDSPACE   0
#define	HPDF_DEF_CHARSPACE   0
#define	HPDF_DEF_FONTSIZE   10
#define	HPDF_DEF_HSCALING   100
#define	HPDF_DEF_LEADING   0
#define	HPDF_DEF_RENDERING_MODE   HPDF_FILL
#define	HPDF_DEF_RISE   0
#define	HPDF_DEF_RAISE   HPDF_DEF_RISE
#define	HPDF_DEF_LINEWIDTH   1
#define	HPDF_DEF_LINECAP   HPDF_BUTT_END
#define	HPDF_DEF_LINEJOIN   HPDF_MITER_JOIN
#define	HPDF_DEF_MITERLIMIT   10
#define	HPDF_DEF_FLATNESS   1
#define	HPDF_DEF_PAGE_NUM   1
#define	HPDF_BS_DEF_WIDTH   1
#define	HPDF_DEF_PAGE_WIDTH   595.276F
#define	HPDF_DEF_PAGE_HEIGHT   841.89F
#define	HPDF_COMP_NONE   0x00
#define	HPDF_COMP_TEXT   0x01
#define	HPDF_COMP_IMAGE   0x02
#define	HPDF_COMP_METADATA   0x04
#define	HPDF_COMP_ALL   0x0F
#define	HPDF_COMP_MASK   0xFF
#define	HPDF_ENABLE_READ   0
#define	HPDF_ENABLE_PRINT   4
#define	HPDF_ENABLE_EDIT_ALL   8
#define	HPDF_ENABLE_COPY   16
#define	HPDF_ENABLE_EDIT   32
#define	HPDF_HIDE_TOOLBAR   1
#define	HPDF_HIDE_MENUBAR   2
#define	HPDF_HIDE_WINDOW_UI   4
#define	HPDF_FIT_WINDOW   8
#define	HPDF_CENTER_WINDOW   16
#define	HPDF_PRINT_SCALING_NONE   32
#define	HPDF_LIMIT_MAX_INT   2147483647
#define	HPDF_LIMIT_MIN_INT   -2147483647
#define	HPDF_LIMIT_MAX_REAL   3.4E38f
#define	HPDF_LIMIT_MIN_REAL   -3.4E38f
#define	HPDF_LIMIT_MAX_STRING_LEN   2147483646
#define	HPDF_LIMIT_MAX_NAME_LEN   127
#define	HPDF_LIMIT_MAX_ARRAY   8388607
#define	HPDF_LIMIT_MAX_DICT_ELEMENT   8388607
#define	HPDF_LIMIT_MAX_XREF_ELEMENT   8388607
#define	HPDF_LIMIT_MAX_GSTATE   28
#define	HPDF_LIMIT_MAX_DEVICE_N   8
#define	HPDF_LIMIT_MAX_DEVICE_N_V15   32
#define	HPDF_LIMIT_MAX_CID   65535
#define	HPDF_MAX_GENERATION_NUM   65535
#define	HPDF_MIN_MAGNIFICATION_FACTOR   0.08
#define	HPDF_MAX_MAGNIFICATION_FACTOR   64.00
#define	HPDF_MIN_PAGE_MEASURE   3
	Minimal page size in user units according to PDF standard. More...
#define	HPDF_MAX_PAGE_MEASURE   14400
	Maximal page size in user units according to PDF standard. More...
#define	HPDF_MIN_HORIZONTALSCALING   10
#define	HPDF_MAX_HORIZONTALSCALING   300
#define	HPDF_MIN_WORDSPACE   -30
#define	HPDF_MAX_WORDSPACE   300
#define	HPDF_MIN_CHARSPACE   -30
#define	HPDF_MAX_CHARSPACE   300
#define	HPDF_MAX_FONTSIZE   600
#define	HPDF_MAX_ZOOMSIZE   10
#define	HPDF_MAX_LEADING   300
#define	HPDF_MAX_LINEWIDTH   100
#define	HPDF_MAX_DASH_PATTERN   100
#define	HPDF_MAX_JWW_NUM   128
#define	HPDF_GMODE_PAGE_DESCRIPTION   0x0001
#define	HPDF_GMODE_PATH_OBJECT   0x0002
#define	HPDF_GMODE_TEXT_OBJECT   0x0004
#define	HPDF_GMODE_CLIPPING_PATH   0x0008
#define	HPDF_GMODE_SHADING   0x0010
#define	HPDF_GMODE_INLINE_IMAGE   0x0020
#define	HPDF_GMODE_EXTERNAL_OBJECT   0x0040
#define	HPDF_MM   2.834646
	Predefined value for calculations with millimeters. Equals to 72.0/25.4 (72 points pre inch per mm). More...
#define	HPDF_IN   72.00000
	Predefined value for calculations with inches. More...

Macro Definition Documentation

HPDF_BS_DEF_WIDTH

#define HPDF_BS_DEF_WIDTH   1

HPDF_BYTE_OFFSET_LEN

#define HPDF_BYTE_OFFSET_LEN   10

HPDF_CENTER_WINDOW

#define HPDF_CENTER_WINDOW   16

HPDF_COMP_ALL

#define HPDF_COMP_ALL   0x0F

Examples

character_map.c, chfont_demo.c, encoding_list.c, image_demo.c, jpeg_demo.c, jpfont_demo.c, png_demo.c, raw_image_demo.c, text_demo.c, and ttfont_demo_jp.c.

HPDF_COMP_IMAGE

#define HPDF_COMP_IMAGE   0x02

HPDF_COMP_MASK

#define HPDF_COMP_MASK   0xFF

HPDF_COMP_METADATA

#define HPDF_COMP_METADATA   0x04

HPDF_COMP_NONE

#define HPDF_COMP_NONE   0x00

HPDF_COMP_TEXT

#define HPDF_COMP_TEXT   0x01

HPDF_DATE_TIME_STR_LEN

#define HPDF_DATE_TIME_STR_LEN   23

HPDF_DEF_CHARSPACE

#define HPDF_DEF_CHARSPACE   0

HPDF_DEF_FLATNESS

#define HPDF_DEF_FLATNESS   1

HPDF_DEF_FONT

#define HPDF_DEF_FONT   "Helvetica"

HPDF_DEF_FONTSIZE

#define HPDF_DEF_FONTSIZE   10

HPDF_DEF_HSCALING

#define HPDF_DEF_HSCALING   100

HPDF_DEF_LEADING

#define HPDF_DEF_LEADING   0

HPDF_DEF_LINECAP

#define HPDF_DEF_LINECAP   HPDF_BUTT_END

HPDF_DEF_LINEJOIN

#define HPDF_DEF_LINEJOIN   HPDF_MITER_JOIN

HPDF_DEF_LINEWIDTH

#define HPDF_DEF_LINEWIDTH   1

HPDF_DEF_MITERLIMIT

#define HPDF_DEF_MITERLIMIT   10

HPDF_DEF_PAGE_HEIGHT

#define HPDF_DEF_PAGE_HEIGHT   841.89F

HPDF_DEF_PAGE_LAYOUT

#define HPDF_DEF_PAGE_LAYOUT   HPDF_PAGE_LAYOUT_SINGLE

HPDF_DEF_PAGE_MODE

#define HPDF_DEF_PAGE_MODE   HPDF_PAGE_MODE_USE_NONE

HPDF_DEF_PAGE_NUM

#define HPDF_DEF_PAGE_NUM   1

HPDF_DEF_PAGE_WIDTH

#define HPDF_DEF_PAGE_WIDTH   595.276F

HPDF_DEF_RAISE

#define HPDF_DEF_RAISE   HPDF_DEF_RISE

HPDF_DEF_RENDERING_MODE

#define HPDF_DEF_RENDERING_MODE   HPDF_FILL

HPDF_DEF_RISE

#define HPDF_DEF_RISE   0

HPDF_DEF_WORDSPACE

#define HPDF_DEF_WORDSPACE   0

HPDF_ENABLE_COPY

#define HPDF_ENABLE_COPY   16

HPDF_ENABLE_EDIT

#define HPDF_ENABLE_EDIT   32

HPDF_ENABLE_EDIT_ALL

#define HPDF_ENABLE_EDIT_ALL   8

HPDF_ENABLE_PRINT

#define HPDF_ENABLE_PRINT   4

HPDF_ENABLE_READ

#define HPDF_ENABLE_READ   0

Examples

permission.c.

HPDF_FALSE

#define HPDF_FALSE   0

Examples

text_demo.c, ttfont_demo.c, and ttfont_demo_jp.c.

HPDF_FIT_WINDOW

#define HPDF_FIT_WINDOW   8

HPDF_GEN_NO_LEN

#define HPDF_GEN_NO_LEN   5

HPDF_GMODE_CLIPPING_PATH

#define HPDF_GMODE_CLIPPING_PATH   0x0008

HPDF_GMODE_EXTERNAL_OBJECT

#define HPDF_GMODE_EXTERNAL_OBJECT   0x0040

HPDF_GMODE_INLINE_IMAGE

#define HPDF_GMODE_INLINE_IMAGE   0x0020

HPDF_GMODE_PAGE_DESCRIPTION

#define HPDF_GMODE_PAGE_DESCRIPTION   0x0001

HPDF_GMODE_PATH_OBJECT

#define HPDF_GMODE_PATH_OBJECT   0x0002

HPDF_GMODE_SHADING

#define HPDF_GMODE_SHADING   0x0010

HPDF_GMODE_TEXT_OBJECT

#define HPDF_GMODE_TEXT_OBJECT   0x0004

HPDF_HIDE_MENUBAR

#define HPDF_HIDE_MENUBAR   2

HPDF_HIDE_TOOLBAR

#define HPDF_HIDE_TOOLBAR   1

HPDF_HIDE_WINDOW_UI

#define HPDF_HIDE_WINDOW_UI   4

HPDF_IN

#define HPDF_IN   72.00000

Predefined value for calculations with inches.

HPDF_INT_LEN

#define HPDF_INT_LEN   11

HPDF_LIMIT_MAX_ARRAY

#define HPDF_LIMIT_MAX_ARRAY   8388607

HPDF_LIMIT_MAX_CID

#define HPDF_LIMIT_MAX_CID   65535

HPDF_LIMIT_MAX_DEVICE_N

#define HPDF_LIMIT_MAX_DEVICE_N   8

HPDF_LIMIT_MAX_DEVICE_N_V15

#define HPDF_LIMIT_MAX_DEVICE_N_V15   32

HPDF_LIMIT_MAX_DICT_ELEMENT

#define HPDF_LIMIT_MAX_DICT_ELEMENT   8388607

HPDF_LIMIT_MAX_GSTATE

#define HPDF_LIMIT_MAX_GSTATE   28

HPDF_LIMIT_MAX_INT

#define HPDF_LIMIT_MAX_INT   2147483647

HPDF_LIMIT_MAX_NAME_LEN

#define HPDF_LIMIT_MAX_NAME_LEN   127

HPDF_LIMIT_MAX_REAL

#define HPDF_LIMIT_MAX_REAL   3.4E38f

HPDF_LIMIT_MAX_STRING_LEN

#define HPDF_LIMIT_MAX_STRING_LEN   2147483646

HPDF_LIMIT_MAX_XREF_ELEMENT

#define HPDF_LIMIT_MAX_XREF_ELEMENT   8388607

HPDF_LIMIT_MIN_INT

#define HPDF_LIMIT_MIN_INT   -2147483647

HPDF_LIMIT_MIN_REAL

#define HPDF_LIMIT_MIN_REAL   -3.4E38f

HPDF_MAX_CHARSPACE

#define HPDF_MAX_CHARSPACE   300

HPDF_MAX_DASH_PATTERN

#define HPDF_MAX_DASH_PATTERN   100

HPDF_MAX_FONTSIZE

#define HPDF_MAX_FONTSIZE   600

HPDF_MAX_GENERATION_NUM

#define HPDF_MAX_GENERATION_NUM   65535

HPDF_MAX_HORIZONTALSCALING

#define HPDF_MAX_HORIZONTALSCALING   300

HPDF_MAX_JWW_NUM

#define HPDF_MAX_JWW_NUM   128

HPDF_MAX_LEADING

#define HPDF_MAX_LEADING   300

HPDF_MAX_LINEWIDTH

#define HPDF_MAX_LINEWIDTH   100

HPDF_MAX_MAGNIFICATION_FACTOR

#define HPDF_MAX_MAGNIFICATION_FACTOR   64.00

HPDF_MAX_PAGE_MEASURE

#define HPDF_MAX_PAGE_MEASURE   14400

Maximal page size in user units according to PDF standard.

HPDF_MAX_WORDSPACE

#define HPDF_MAX_WORDSPACE   300

HPDF_MAX_ZOOMSIZE

#define HPDF_MAX_ZOOMSIZE   10

HPDF_MIN_CHARSPACE

#define HPDF_MIN_CHARSPACE   -30

HPDF_MIN_HORIZONTALSCALING

#define HPDF_MIN_HORIZONTALSCALING   10

HPDF_MIN_MAGNIFICATION_FACTOR

#define HPDF_MIN_MAGNIFICATION_FACTOR   0.08

HPDF_MIN_PAGE_MEASURE

#define HPDF_MIN_PAGE_MEASURE   3

Minimal page size in user units according to PDF standard.

HPDF_MIN_WORDSPACE

#define HPDF_MIN_WORDSPACE   -30

HPDF_MM

#define HPDF_MM   2.834646

Predefined value for calculations with millimeters. Equals to 72.0/25.4 (72 points pre inch per mm).

Examples

clip_hatch.c, clip_hatch2.c, matrix.c, pattern.c, pattern2.c, and transforms.c.

HPDF_NOERROR

#define HPDF_NOERROR   0

HPDF_OBJ_ID_LEN

#define HPDF_OBJ_ID_LEN   7

HPDF_OK

#define HPDF_OK   0

HPDF_PI

#define HPDF_PI   3.14159265358979323846

Examples

clip_hatch.c, clip_hatch2.c, image_demo.c, matrix.c, text_demo.c, text_demo2.c, and transforms.c.

HPDF_PRINT_SCALING_NONE

#define HPDF_PRINT_SCALING_NONE   32

HPDF_REAL_LEN

#define HPDF_REAL_LEN   64

HPDF_SHORT_BUF_SIZ

#define HPDF_SHORT_BUF_SIZ   32

HPDF_TEXT_DEFAULT_LEN

#define HPDF_TEXT_DEFAULT_LEN   256

HPDF_TMP_BUF_SIZ

#define HPDF_TMP_BUF_SIZ   512

HPDF_TRUE

#define HPDF_TRUE   1

Examples

character_map.c, chfont_demo.c, encoding_list.c, jpfont_demo.c, outline_demo.c, outline_demo_jp.c, page_sizes_demo.c, text_annotation.c, ttfont_demo.c, ttfont_demo_jp.c, and utf8.c.

HPDF_UNICODE_HEADER_LEN

#define HPDF_UNICODE_HEADER_LEN   2
